A sheet of ionized air is an effective way to eliminate static and clean parts or materials!

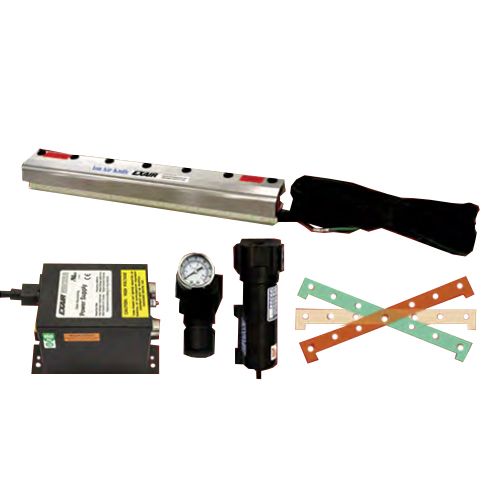

What Is The Standard Ion Air Knife?

EXAIR’s Gen4 Standard Ion Air Knife offers 30% improved performance at low pressures allowing you to achieve the same or better results, which saves compressed air and money. Th ey are an eff ective way to eliminate static. Like its “super” counterpart, the Gen4 Standard Ion Air Knife removes static electricity from plastics, webs, sheet stock and other surfaces where tearing, jamming or hazardous shocks are a problem. This ionizer uses our original Standard Air Knife to carry ions from a Gen4 Ionizing Bar to the charged surface – up to 20 feet (6.1m) away. Though not as effi cient as our Gen4 Super Ion Air Knife (40:1 air amplification), the Gen4 Standard Ion Air Knife (30:1 air amplification) still provides fast static decay and strong blowoff force for cleaning. Force can be adjusted from a “blast” to a “breeze”. The Gen4 Standard Ion Air Knife is electrically powered, is shockless and has no moving parts.

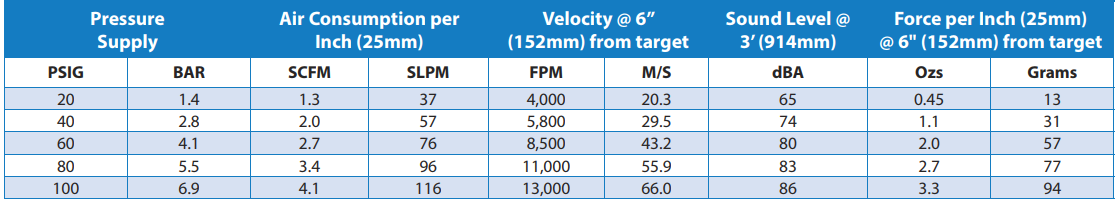

Standard Ion Air Knife Specifications
The Gen4 Standard Ion Air Knife is available in standard lengths of 3″, 6″, 9″, 12″, 18″, 24″, 30″, 36″, 42″ and 48″ (76, 152, 229, 305, 457, 610, 762, 914, 1067 and 1219mm). Special lengths up to 48″ (1219mm) and unlimited system lengths are available.
A 5′ (1.52m) armored and shielded power cable with ground and assembled bayonet connector are included. EXAIR Model 7960 or 7961 Gen4 Power Supply (5kV) is required for bar operation. See page 129 for details.

Certifications: Gen4 Ionizing Bars and Gen4 Power Supplies are UL Component Recognized to U.S. and Canadian safety standards, and are CE and RoHS compliant.
Compressed Air: 1/4 NPT inlets are provided on each end.
Electrical: For use with 5 kVrms, 5 milliamperes (max.) power supply.
Electrical Hazard: Gen4 Ionizing Bars are shockless (less than 40 microamperes short circuited).
Do not use near flammable materials or gases.

Materials of Construction:

• Metal Parts: Aluminum
• Plastic Parts: UL rated 94 HB
• Emitters: Stainless Steel

Maximum Ambient Temperature: 165°F (74°C)

Warrantee: 5 years
