Filter chips and solids out of used coolant and liquids from below grade sumps or elevated tanks.

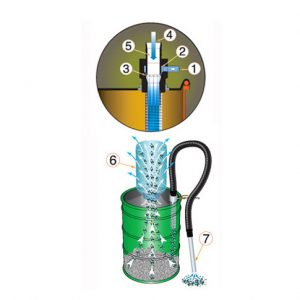

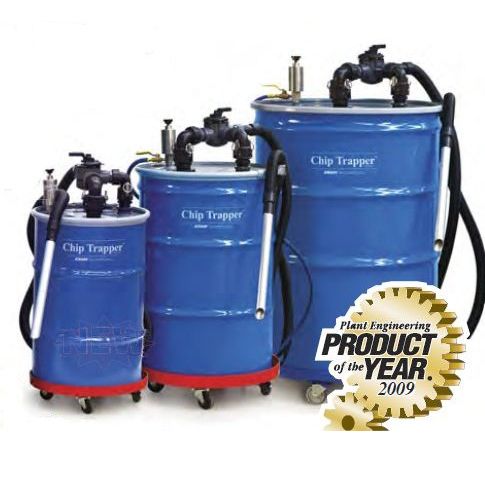

Vacuum in liquid with solids and pump out only the liquid, with 15 feet of lift! The patented High Lift Chip Trapper offers a fast, easy way to clean chips, swarf and shavings out of used coolants and other liquids. The High Lift Chip Trapper vacuums the coolant or liquid that is filled with debris and traps all the solids in a reusable filter bag. Only the liquid pumps back out. It is ideal for use on pits, wells, below grade sumps, tanks and storage containers of contaminated liquids.

EXAIR’s compressed air operated High Lift Chip Trapper System attaches quickly to the included 30, 55 or 110 gallon drum lid. Its high powered vacuum is able to lift liquids up to 15 feet or pump liquids from as far as 20 feet and fi ll a 55 gallon drum in less than 85 seconds. With the simple turn of a knob, the same stainless steel pump quickly empties the drum. The High Lift Chip Trapper has the extra power you need to move liquids from below grade work areas, sumps or tanks. Wells, pits, below grade or elevated tanks can accumulate debris. This debris can cause problems when the liquid is transferred into a machine or process. Waste oil for heating or recycled lubricants which are suitable for dirtier jobs can be used without worry of solids damaging equipment. The heavy duty power of the High Lift Chip Trapper is capable of moving high viscosity liquids up to 1400 centipoise.

Applications
• Below grade coolant sumps
• Deep wells
• Underground storage tanks
• Pits
• Drains
• Deep hole broaching
• Bulk storage tanks
• Cisterns

Advantages
• Removes unwanted solids from liquid
• Recycles coolants
• No moving parts
• No motors to clog or wear out
• Self priming stainless steel pump
• Safe – no electricity
• Built-in pressure/vacuum relief
• Spill free – auto safety shutoff
• Quiet

Warranty: 5 years
