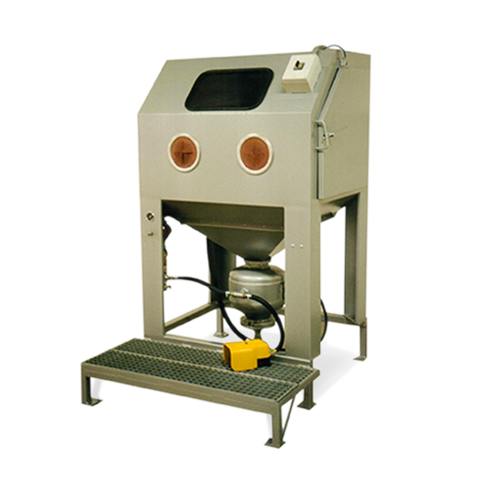

S110- Pressure blast cabinet

s110-szemcseszoro-kabin-acf
  • Work screen in 3 pieces, maximum load 150 k
  • Step grid on platform, width 500 mm
  • Sandblasting switch pneumatic foot pedal
  • Loading door unhingeable single-piece wing-type door with lever closing system assembled on each side of cabinet allowing a passage of 660 x h 630
  • Window without blind spot including 1 tilting frame securing 1 safety glass window, thickness 4 mm, fitted in a sealed rubber profile and 1 inside wear glass, thickness 4 mm, clamped on the frame
  • Lighting 1 waterproof metallic bowl with 2 fluorescent 18 W tubes, dust-free ceiling light protected by wear glass
  • Pressure control valve fitted in the shelter of the left front foot of cabinet ; adjustable from  0 to 10 bar
  • Light switch on cabin front panel, in the right front foot of cabinet
  • Electric board waterproof box in the left front foot of cabinet with protection against overloading and short-circuits + 30 mA differential protection
  • Security switch1 pneumatic sensor on top of each door immediately stops sand blasting when one of the 2 doors of cabinet opens
  • Arm access double abrasion-resistant rubber holes
  • Abrasive adjustment calibre inside of sandblasting T according to nozzle diameter

Nozzles Ø 3 and 4: calibre Ø 4,5

Nozzles Ø 5 and 6: calibre Ø 6,5

Nozzles Ø 8: calibre Ø 8,5

I'm interested in this product, send me an offer

Make an offer!

Make an offer and we will contact you soon.







By ticking the checkbox, I declare that I have met the Privacy Policy and have accepted it. By ticking the checkbox - based on the General Data Privacy Regulation (GDPR) - I understand that the data controller can handle my personal data as specified in the GDPR and the terms of Mimiko’s Privacy Policy.


Download English product information »

Manufacturer: ACF      More products »
