Ring of ionized airflow clamps around the part! Neutralizes and cleans continuous moving surfaces!

What Is The Super Ion Air Wipe?

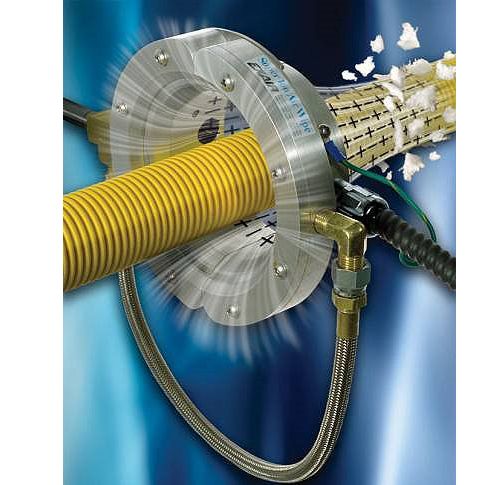

EXAIR’s Gen4 Super Ion Air Wipe provides a uniform 360˚ ionized airstream that is easy to clamp around a part for eliminating static electricity and contaminants. It is ideal for use on pipe, cable, extruded shapes, hose, wire and more. It maximizes ionized airflow while minimizing compressed air consumption.

Why The Super Ion Air Wipe?
The Gen4 Super Ion Air Wipe provides total coverage of the part moving through it. The high volume, high velocity fl ow attaches itself to the surface and wipes it down with the static eliminating ions. The airfl ow stays attached to the surface and is eff ective up to 15′ (4.6m) away from where the Gen4 Super Ion Air Wipe is mounted. An optional pressure regulator provides infi nite control of the air volume and velocity. Increasing the pressure increases the forceful wiping action. Lower pressures provide excellent coverage with much lower force and velocity.

I'm interested in this product, send me an offer

Make an offer!

Make an offer and we will contact you soon.







By ticking the checkbox, I declare that I have met the Privacy Policy and have accepted it. By ticking the checkbox - based on the General Data Privacy Regulation (GDPR) - I understand that the data controller can handle my personal data as specified in the GDPR and the terms of Mimiko’s Privacy Policy.

EXAIR Model 7960 or 7961 Gen4 Power Supply (5kV) is required for bar operation.
Certifications: The Gen4 Super Ion Air Wipe and Gen4 Power Supply are UL Component Recognized to U.S. and Canadian safety standards, and are CE and RoHS compliant.
Electrical: For use with 5 kVrms, 5 milliamperes (max.) power supply.
Electrical Hazard: Shockless (less than 40 microamperes short circuited).

Do not use near flammable materials or gases.

Materials of Construction:

  • Metal Parts: Aluminum
  • Plastic Parts: UL rated 94 HB Emitter: Stainless Steel

Maximum Ambient Temperature: 165°F (74°C)

Warranty: 5 years


Download English product information »

Manufacturer: Exair      More products »

Do you have questions? Find our expert!

Do you have questions? Find our expert!

Send a message:
info@mimiko.hu

Which industry do we recommend?

  • Automotive Suppliers
  • Electronics industry
  • Heavy industry, energy industry
  • Light industry
  • Pharmaceutical and chemical engineering
  • Production

Technical parameters of Super Ion Air Wipe
