Ion Air Cannon

Quiet, effi cient, concentrated flow of ionized air removes static and dust!

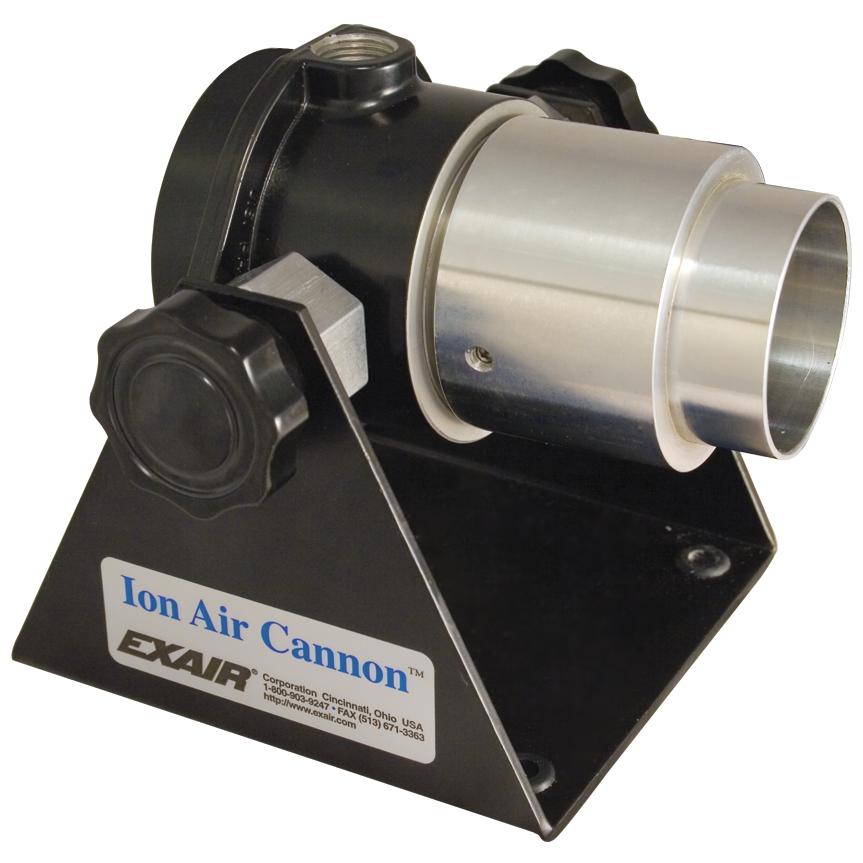

What Is The Ion Air Cannon?

EXAIR’s Gen4 Ion Air Cannon neutralizes static electricity and cleans at distances up to 15 feet (4.6m) with no moving parts.
It is ideal for those hard to reach spaces or confined areas that require a concentrated flow of static eliminating ions. With an optional pressure regulator, the air volume and velocity are infi nitely adjustable over a wide range, for light to heavy duty applications.

Why The Ion Air Cannon?
The Gen4 Ion Air Cannon will maximize ionized airfl ow while minimizing compressed air consumption. A small amount of compressed air is used to entrain a high volume fl ow of surrounding air. This combined stream is ionized by an emitter point (shockless) and delivered to the charged surface. A hose or tube can be connected to the air intake of the Gen4 Ion Air Cannon to draw quality air from another area. It requires only 10 PSIG (0.7 BAR) for most applications.
The compact design saves bench space and allows mounting in confi ned areas.
The sturdy stand is pre-drilled and can be wall, bench or machine mounted. It incorporates a swivel adjustment for directing the airflow.

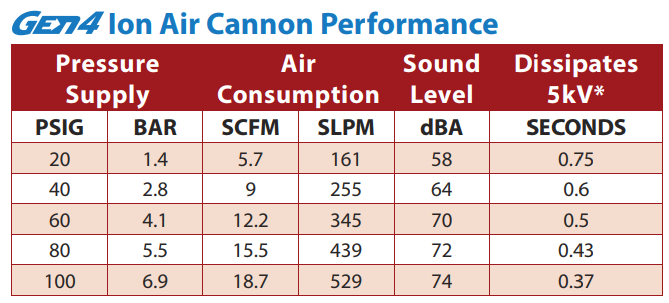

Ion Air Cannon Specifications

EXAIR Model 7960 or 7961 Gen4 Power Supply (5kV) is required for bar operation. See page 129 for details.
Certifications: The Gen4 Super Ion Air Wipe and Gen4 Power Supply are UL Component Recognized to U.S. and Canadian safety standards, and are CE and RoHS compliant.
Electrical: For use with 5 kVrms, 5 milliamperes (max.) power supply.
Electrical Hazard: Shockless (less than 40 microamperes short circuited).
Do not use near flammable materials or gases.

Materials of Construction:

• Metal Parts: Aluminum
• Plastic Parts: UL rated 94 HB Emitter: Stainless Steel
• Maximum Ambient Temperature: 165°F (74°C)

Shims: Thicker shims can be installed easily if additional hardhitting velocity is required.
Compressed Air: 3/8 NPT inlet provided.

Warranty: 5 years
