E-Vac Vacuum Generator

e-vac-vakuum-generator-exair

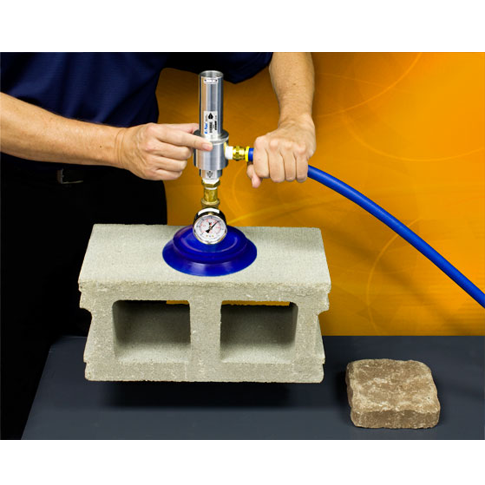

A simple turn can increase or decrease vacuum and flow!

Adjustable E-Vac is a series of low cost, compressed air powered vacuum generators where the vacuum and
flow rates can be easily adjusted to suit the application requirements. These vacuum pumps are ideal for a wide
variety of pick and place, box opening, clamping, lifting, chucking, and surface mounting applications. They are
maintenance free and have no moving parts to wear out.

I'm interested in this product, send me an offer

Make an offer!

Make an offer and we will contact you soon.







By ticking the checkbox, I declare that I have met the Privacy Policy and have accepted it. By ticking the checkbox - based on the General Data Privacy Regulation (GDPR) - I understand that the data controller can handle my personal data as specified in the GDPR and the terms of Mimiko’s Privacy Policy.

Engineered for high efficiency, the Adjustable E-Vac minimizes compressed air use by allowing it to be tuned to the application. With a simple turn of the unit, the vacuum and flow levels can be changed to overcome porosity and increase or decrease the lifting power. The straight-through, single stage aluminum construction requires no vacuum filter and simply passes contaminants from dirty environments through the unit so there
is no clogging or loss of suction.
Adjustable E-Vac is available in 4 sizes that have adjustable vacuum rates up to 25″ Hg (85 kPa) and flow rates up to 81 SCFM (2,294 SLPM). Kit configurations that include vacuum cups, fittings, tubing and a mounting clip are available.

More information: Catalog 136 p.

Warranty: 5 years


Download English product information »

Manufacturer: Exair      More products »
