Replace messy mist systems – improve dry machining with clean, cold air!What Is The Cold Gun Aircoolant System?
A new solution to an old problem. Heat build up on dry machining operations reduces tool life and machining rates. The Cold Gun Aircoolant System produces a stream of clean, cold air at 50°F (28°C) below supply air temperature. Operation is quiet and there are no moving parts to wear out. It will remove heat to prolong tool life and increase productivity on machining operations when liquid coolants cannot be used. The Cold Gun is also an alternative to expensive mist systems. It eliminates the costs associated with the purchase and disposal of cutting fl uids and worker related health problems from breathing airborne coolants or slipping on wet fl oors.

Applications
• Tool sharpening
• Drill and cutter grinding
• Routing
• Plunge and form grinding
• Milling
• Surface grinding
• Drilling
• Tire grinding
• Band sawing
• Plastic machining
• Laser cutting
• Chill rolls
• Setting hot melt adhesives

Advantages
• Improves production rates
• Prevents burning
• Extends tool life – reduces breakage
• Improves tolerance control
• Prevents smearing of metal or plastics
• Finished part is dry
• Eliminates wheel loading
• Low cost
• Compact, lightweight, portable
• No moving parts – maintenance free
• Quiet
• No coolant cost
• No electricity

Selecting The Right Model
Cold Gun Aircoolant Systems are available with either a Single Point or Dual Point Hose Kit.

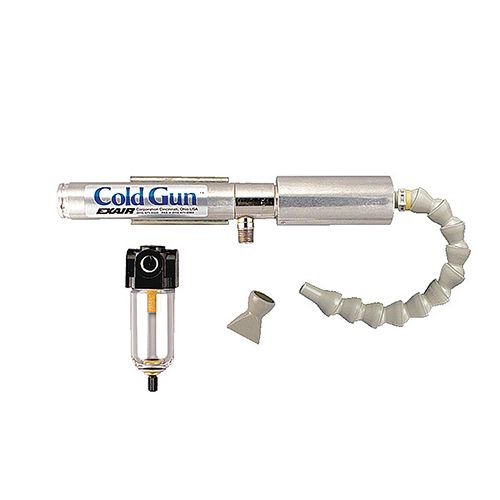

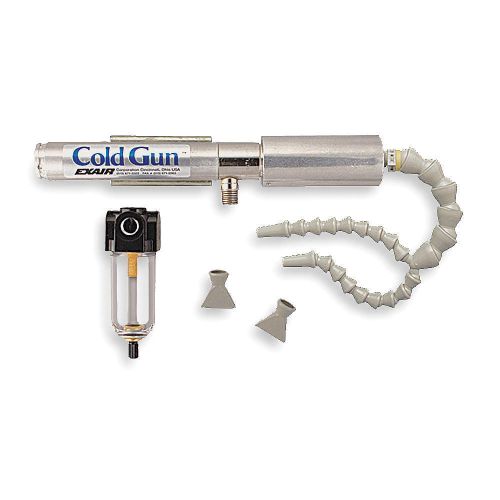

The Single Point Hose Kit (included with the Model 5215 Cold Gun and Model 5230 High Power Cold Gun) is recommended for applications where a concentrated airflow is needed such as drilling and grinding operations. The Dual Point Hose Kit (included with the Model 5315 Cold Gun and Model 5330 High Power Cold Gun) is recommended for applications where the heat is generated over a larger surface area such as band sawing, milling, chill rolls and hot melt adhesives. A Cold Gun System with the Model 5901 Single Point Hose Kit can be easily converted to a “dual point” system with the purchase of the Model 5902 Dual Point Hose Kit.

Warranty: 5 years
