Air Wipe

Blowoff , dry, clean and cool pipe, cable, extruded shapes, hose, and wire!
Split design requires no threading!
Uniform 360° Airfl ow!- For Environments Up To 800°F – Variable Force And Flow!

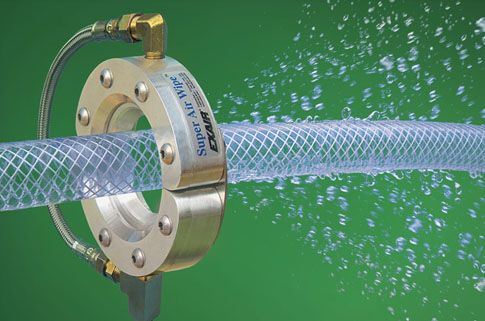

What Is The Super Air Wipe?

EXAIR’s Super Air Wipe provides a uniform 360° airstream that is ideal for blowoff , drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more. The split design off ers easy clamping around the surface of the material moving through it, eliminating the need for threading. Available from 3/8″ (10mm) through 11″ (279mm) diameters.
All models include stainless steel screws and shims. Stainless steel wire braided hose is also included on sizes up to 4″ (102mm) for added corrosion and heat resistance. Aluminum models are rated for temperatures up to 400°F (204°C) and stainless steel models for temperatures up to 800°F (427°C).

Applications
• Drying after washing, cleaning, plating or coating
• Blowoff dust and contaminants
• Cool hot extruded shapes
• Uniformly wipe surfaces
• Dry extruded profi les, rod and medical tubing
• Eliminate solution carryover – no cross contamination
• Blow excess water from automotive door gaskets
• Remove excess coatings, water and oil
• Dry tube, hose, wire, fi ber optics
• Minimize solution loss due to drag-out
• Clean paint gun tips
• Dry screen printed or ink jetted surfaces
• Clean strips and ribbon

Advantages
• Quiet
• Low air consumption
• Uniform 360° airfl ow
• Stainless steel hardware resists corrosion
• Aluminum models for temperatures up to 400°F (204°C)
Stainless steel models for temperatures up to 800°F (427°C)
• Stainless steel hose supplied on sizes up to 4″ (102mm)
• No electricity, no moving parts
• Non-contact – no wiper blade
• Split design – compact, rugged, easy to install
• Lightweight, low profi le
• Tapped holes for mounting
• Variable force and fl ow
• Meets OSHA maximum dead end pressure and noise requirements

Warrantee: 5 years
